Fixing VeriSign Certificates on Windows Servers

One item I’ve seen repeatedly cause issues in new Exchange or Lync environments centers around certificates from public providers such as VeriSign, Digicert, or Entrust. These providers generally use multiple tiers of certificates, so when you purchase a certificate it is generally issued by a subordinate, or issuing certificate authority instead of the root certificate authority. The way that SSL certificate chains work require an end client to only need to trust the top most, or root certificate in the chain, in order to accept the server certificate as valid. But in order to properly present the full SSL chain to a client a server must first have the correct trusted root and intermediate certificate authorities loaded. So the bottom line here is that if you haven’t loaded the full certificate chain on the server then you may see clients have trouble connecting.

This becomes especially problematic in the case of VeriSign’s latest chain. If you are using a modern Windows client such as Windows 7 or 2008 R2 you’ll see the VeriSign Class 3 Public Primary Certification Authority – G5 certificate which expires in 2036 with thumbprint ‎4e b6 d5 78 49 9b 1c cf 5f 58 1e ad 56 be 3d 9b 67 44 a5 e5 installed in the Trusted Root Certification Authorities by default. There is some extra confusion generated because there is also a VeriSign Class 3 Public Primary Certification Authority – G5 certificate which expires in 2021 with thumbprint ‎32 f3 08 82 62 2b 87 cf 88 56 c6 3d b8 73 df 08 53 b4 dd 27 installed in the Intermediate Certification Authorities by default. The names of these certificates are identical, but they are clearly different certificates expiring on different dates.

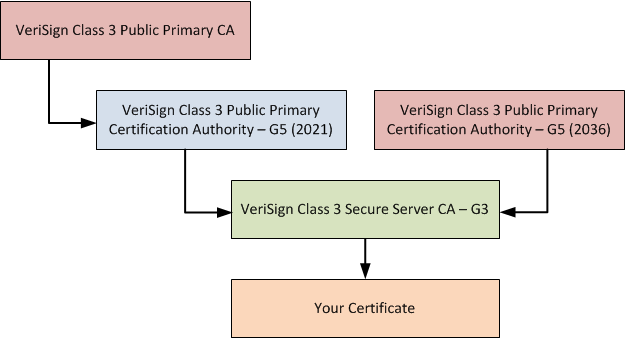

What you’ll find after purchasing a VeriSign certificate is that the CA which actually issues your server certificate, VeriSign Class 3 Secure Server CA – G3, is cross-signed by both of the G5 certificates. This means that there are now 2 different certificate chains you could present to clients, but what is actually presented depends on how you configure the server. The two chain options you can present are displayed below, and while one is a bit longer, both paths are valid.

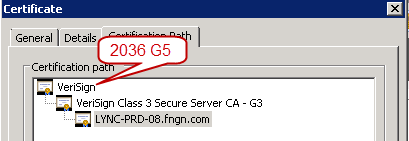

So if a client trusts either of the G5 certificates as a trusted root, it will trust any certificate issued by a subordinate CA such as the G3. What ends up happening is that the certificate chain will look correct when a Windows 7 or 2008 R2 server connects to it, because those operating systems already have the 2036 G5 CA as a trusted root. You’ll see only 3 tier chain presented, and the connection will work just fine.

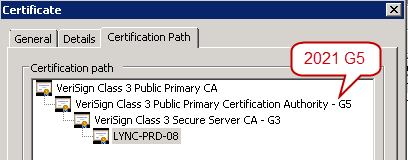

There’s nothing actually wrong with this if all you have are newer clients. In fact, that’s one advantage of cross-signing – that a client can leverage the shortest possible certificate chain. But any kind of downlevel client, such as Lync Phone Edition, does not trust that newer G5 CA by default. This means that when those devices try to connect to the site they are presented with the 2036 G5 certificate as the top-level root CA, and since they do not trust that root they will drop the connection. In order to support the lowest common denominator of devices the chain should actually contain 4 tiers, like in the following screenshot. Older devices typically have the VeriSign Class 3 Public Primary CA already installed as a trusted root, so you may get better compatibility this way.

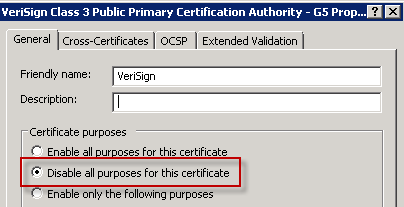

The screenshots have been from the same certificate, but the difference is how the chain is presented. In order for a server to present the full chain you must log on to each server hosting the certificate and open the certificates MMC for the local computer. Locate the VeriSign Class 3 Public Primary Certification Authority – G5 certificate in the Trusted Root Certification Authority node, right-click, and open the Properties. Select Disable all purposes for this certificate and press OK to save your changes.


By disabling the incorrect trusted root certificate the server will now be presenting the full chain. The big ‘gotcha’ here is that you can’t easily test this. If you browse to the site from a Windows 7 client and open the Certification Path tab for the certificate it’s still going to look the same as before. The reason for this is that Windows 7 also has the VeriSign Class 3 Public Primary Certification Authority – G5 certificate in the Trusted Root Certification Authorities machine node by default. And because Windows 7 trusts that as a root CA, it will trust any certificate below that point. Certificate testing tools you find on the Internet also aren’t going to be much help here because they also already trust the 2036 G5 certificate. The only way you can verify the full chain is to delete or disable that cert from the client you’re testing on. And no, this is not something you should ever attempt on multiple machines – I’m suggesting this only for testing purposes. If you’re using any kind of SSL decryption at a load balancer to insert cookies for persistence you’ll want to make sure the load balancer admin has loaded the full chain as well.

So now you’ve fixed the chain completely, and after the next Windows Update cycle you’ll probably find the G5 certificate enabled again on the server. The root certificate updates for Windows will actually re-enable this certificate for you (how kind of them!), and result in a broken chain for older clients again. In order to prevent this from occurring you can disable automatic root certificate updates from installing via Windows Update. This can be controlled through a Group Policy setting displayed here:


Sharing is Caring



Comments from the Peanut Gallery

  1. Curtis Johnstone

    Excellent article Tom! I had a smimilar issue with DigiCert – with all the problems cross-signing has caused, I am not sure the benefits have out-weighed the disadvantages. The Windows Update root certificate updates had me thinking I had gone insane – I would solve the problem and then it would come back again!

  2. Mark B. Cooper (Microsoft PFE)

    Thanks for posting this as many of our customers often come across this issue. While the solution you posted does work, it is far from ideal. Turning off the Root Update program will cause many other applications and code signing issues in the future as CAs mature and commercial providers renew and stand up new CAs to issue certificates from.

    I would like to recommend a better approach to this issue. This is something I have done with a number of my customers. Rather than turn off the updates, leave it enabled as is the default, and rather, place the “VeriSign Class 3 Public Primary Certification Authority – G5″ in the Untrusted Certificates folder in the machine context of the certificate store (Run MMC.exe as local admin, Add Snap-In, Certificates, Local Computer). By placing the certificate in the untrusted folder, it will override the certificate also placed in the Trusted Root Certification Authorities folder and subsequently updated by the Root Update program.

    In this fashion you maintain the operational security health of the computer and eliminate the problematic chaining issue.

  3. Tom Pacyk

    Mark, that’s great info. I’ve always been concerned with disabling those updates, but was unaware of any other workarounds. Thanks for the tip!

  4. Dean Winter

    Thanks very much for this awesome post. Really helped out explaining to management how their Java service suddenly stopped working.

  5. Anonymous

    This blog entry really, truly, just saved my bacon. THANK YOU!
